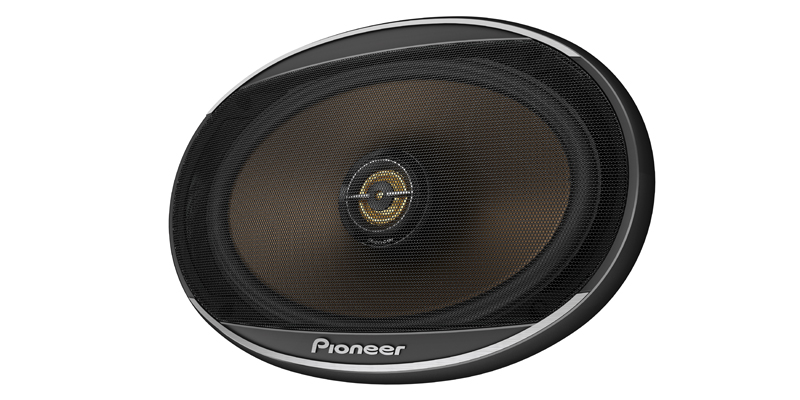

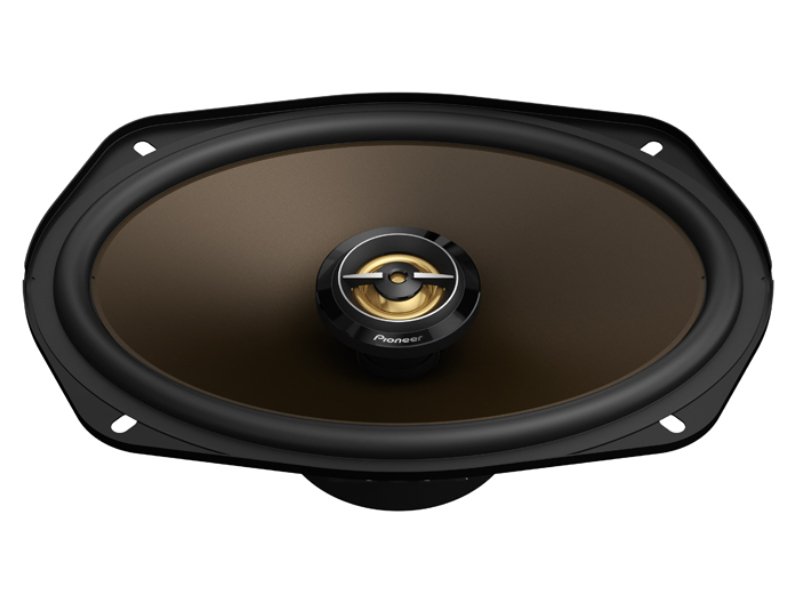

Pioneer TS-A693FH

Pioneer 6" x 9" 2-way 460 W Max Power Coaxial Speakers - TS-A693FH

Authorized Dealer Price Match Guarantee

Price Match Guarantee

Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Price	$169.99
Savings	$10.00
Our Price	159.99$159.99 Sale Ends : December 31, 2025 -- OR -- $40.00 Sale Ends : December 31, 2025 In 4 installments with On Sale

Availability
Schedule Delivery

Literature

460 Watts Max Power (95 Watts Nominal)
18mm Polyetherimide (PEI) hard dome tweeter
29 Hz to 49k Hz Frequency Range

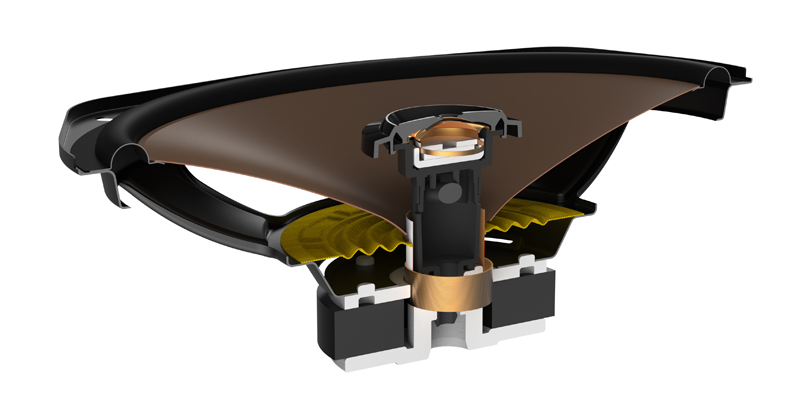

6" x 9" Aramid fiber reinforced Injection Molded Polypropylene (IMPP) cone construction
Pioneer patented P.F.S.S. (Progressive Flex Suspension System)(U.S. Patent 20,120,106,777)

What's in the Box

Two 6"x9" 2-way coaxial speakers
Two Pioneer Multi-Fit mounting brackets
Two protective Grilles
Two 12" lengths of speaker wire (female quick slides on one end and bare wire on the other)
Eight 1-1/8" Screws
Eight 3/8" Screws
Warranty information

SYSTEM
System Type	Coaxial 2-way
Sound Pressure Level (Sensitivity)	92 dB (+- 1.5dB)
Frequency Range	29 Hz to 49k Hz
Continuous Power Handling (RMS)	95 Watts
Maximum Peak Power Handling	460 Watts
Nominal Impedance	4 ohms
Woofer
Diameter	6" x 9"
Cone Material	Aramid fiber reinforced IMPP
Surround Material	Elastic Polymer
Basket Material	Iron Plate Press
Magnet Material	Ferrite
Magnet Weight	11.39 oz
Voice Coil Bobbin	Glass Imide
Voice Coil wire	Copper
Mounting Depth	2-7/8" (Shallow basket)
Tweeter
Type	Component Polyetherimide (PEI) hard dome tweeter
Diameter	18 mm
Diaphragm Material	Film (PEI)
Magnet Material	Neodymium
Magnet Weight	0.17
Warranty
Warranty (must be purchased from a Authorized Pioneer Dealer)	1 year
