What's in the Box
| SYSTEM | |
|---|---|

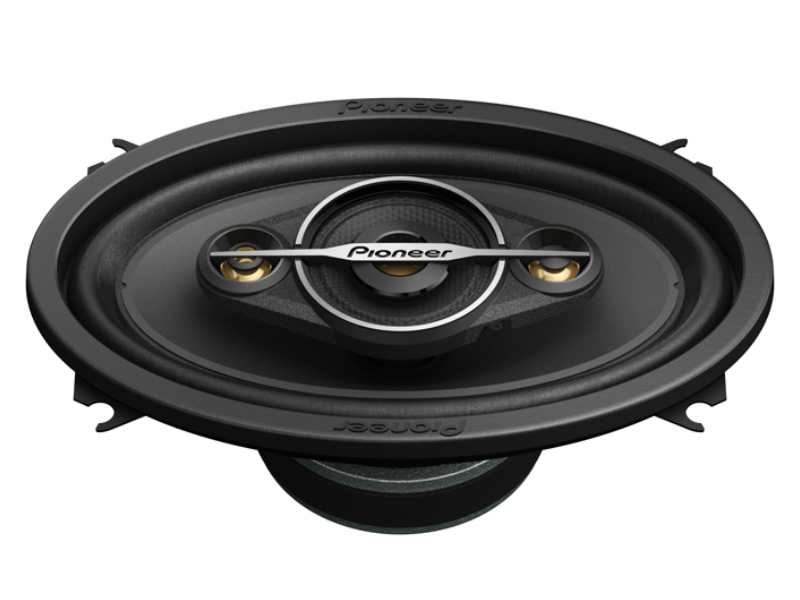

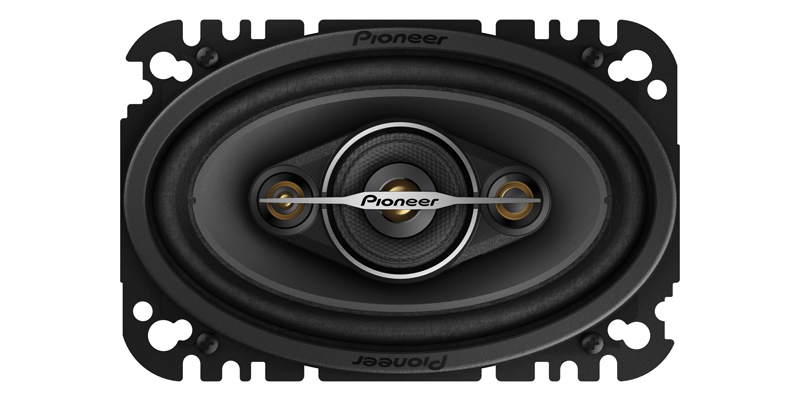

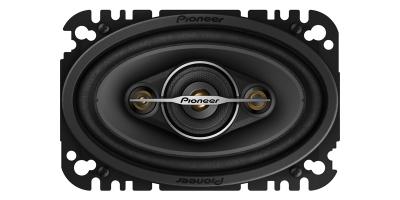

| System Type | 4-way Coaxial |
| Sound Pressure Level (Sensitivity) | 88 dB (+- 1.5dB) |
| Frequency Range | 34 Hz to 49 kHz |
| Continuous Power Handling (RMS) | 30 Watts |
| Maximum Peak Power Handling | 210 Watts |
| Nominal Impedance | 4 ohms |

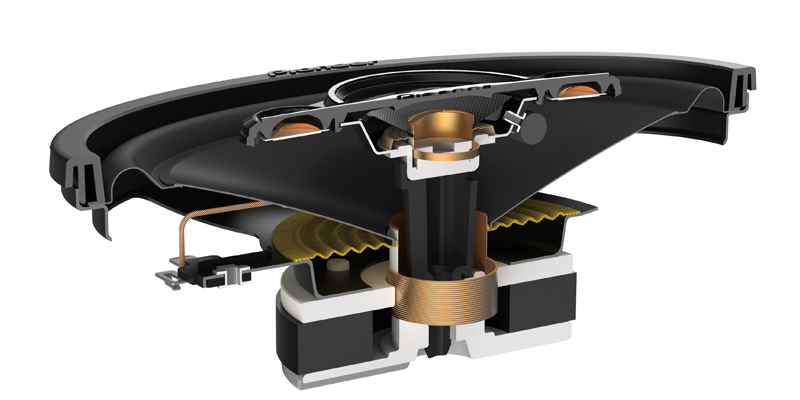

| Woofer | |
| Diameter | 6 x 4" |
| Cone Material | Carbon and mica reinforced IMPP |
| Surround Material | Rubber coated cloth |
| Basket Material | Iron Plate Press |
| Magnet Material | Ferrite |
| Magnet Weight | 4.4 oz |
| Voice Coil Bobbin | Glass Imide |
| Voice Coil wire | Copper |
| Mounting Depth | 1-5/8" (Shallow basket) |
| Tweeter | |
| Type | Twin Polyethylene terephthalate (PET) dome |
| Diameter | 11 mm (Super) and 11 mm |
| Warranty | |
| Warranty (must be purchased from a Authorized Pioneer Dealer) | 1 year |
