Authorized Dealer
Price Match Guarantee
| Our Price |
$180.00
-- OR --
$45.00 In 4 installments with
|
Key Features
What’s in the Box
| Standards & Performance | |
|---|---|
| Continuous Power Handling (RMS) | 500 W |
| Frequency Range | 20 Hz to 1.6 kHz |
| Maximum Peak Power Handling - Watts | 1600 W |
| Nominal Load Impedance | 4-ohm |
| Sensitivity (1W/1m) | 92 dB |
| System-Type | Component |
| Features | |
| Cut Out dimensions | 11.125 inch(es) |
| Equivalent Compliance (VAS) | 37.7 |
| Free Air Resonance (Fs) | 38 |
| Linear Excursion (Xmax) | 11.3 |
| Port Diameter | 3 inch(es) |
| Port Length | 6.5inch(es) |
| Recommended Ported Box volume | 1.5 Cu Ft / 42.5 Liters |
| Recommended Sealed Enclosure Volume | 1.25 Cu Ft / 35.4 Liters |
| Subwoofer Mounting Depth | 6.125 inch(es) |
| Total Speaker "Q" (Qts) | 0.73 |
| Materials | |
| Basket Material | Steel |
| Center Cap Material | Polypropylene |
| Damper | Poly cotton |
| Drive Cone Material | Cellulose Fiber |
| Installation Ring | ABS |
| Magnet Material | Ferrite |
| Magnet Weight | 90 oz |
| Surround Material | Elastic Polymer / Reinforced Fiber |
| Surround Type | Rolled |
| Voice Coil Bobbin | Aluminum |
| Voice Coil Type | Dual |
| Voice Coil wire | Copper |

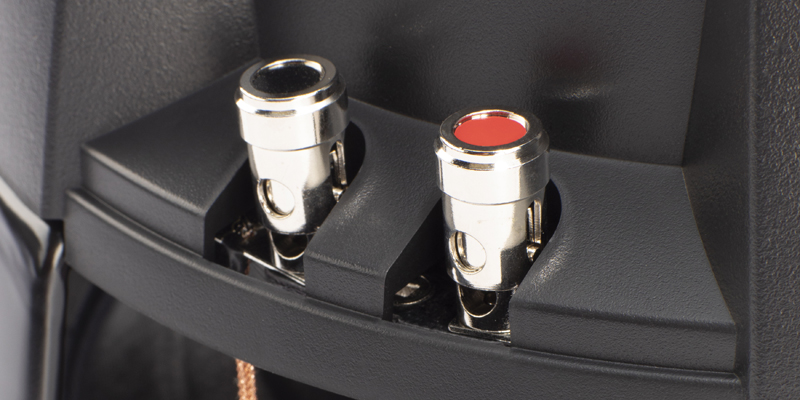

| Wire Terminals | Push Type |
