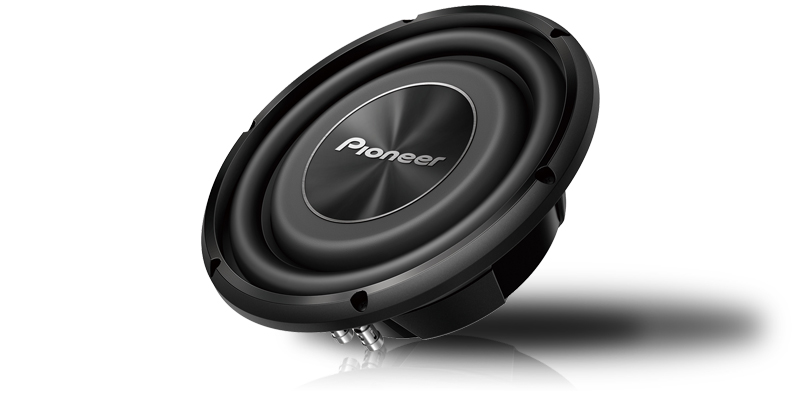

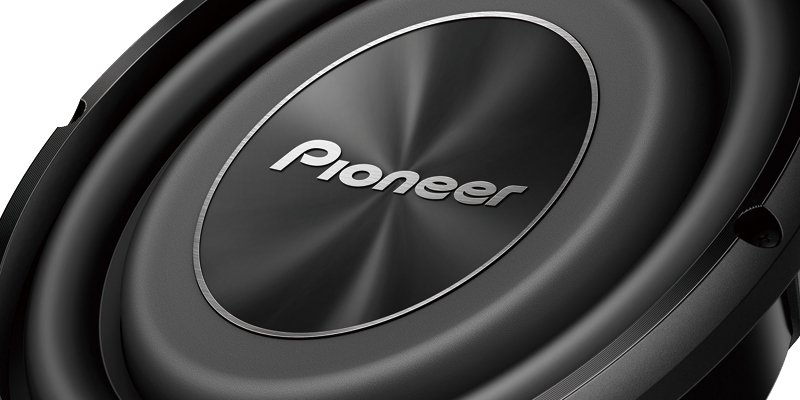

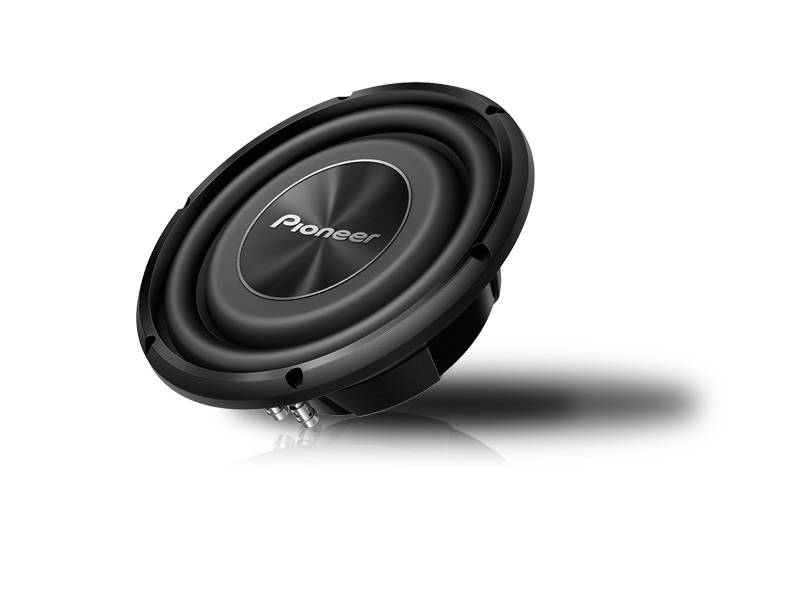

Pioneer TS-A2500LS4

Pioneer Shallow-Mount Subwoofer with 1200 Watts Max. Power - TS-A2500LS4


Pioneer Shallow-Mount Subwoofer with 1200 Watts Max. Power - TS-A2500LS4
Pioneer Shallow-Mount Subwoofer with 1200 Watts Max. Power - TS-A2500LS4
Pioneer Shallow-Mount Subwoofer with 1200 Watts Max. Power - TS-A2500LS4
Black Friday Day Sale Now On
Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Our Price $200.00 -- OR -- $50.00 In 4 installments with
Availability
Schedule Delivery
Literature

  • 1200 Watts Max Power (300 Watts Nominal)
  • Unique Design with just 3-3/8" Mounting Depth
  • Small Enclosure Use (0.35 0.7 cu. ft.)
  • 4 ohms Single Voice Coil
  • Glass Fiber and Mica Reinforced IMPP Cone
  • Double reinforced Spider
  • 8-AWG Push Terminals
  • Rubber Surround
Key Features
Speaker GrillSold separately (UD-10GL)
Maximum Peak Power Handling - Watts1200 Watts
Warranty1 Year
Frequency Range20 Hz to 900 Hz
System TypeComponent Subwoofer
Sensitivity (1W/1m)85dB
CTA-2031 CompliantYes
Continuous Power handling (RMS) - Watts300 Watts
Nominal Impedance - OHM4
Build
ShapeRound
Size10"
Cone MaterialIMPP - Composite
Center Cap MaterialABS
Surround MaterialRubber
Surround TypeRolled
Basket MaterialStamped Metal
Magnet MaterialFerrite
Magnet Weight43.4 oz
Voice Coil TypeSingle Voice
Voice Coil BobbinKapton
Voice Coil wireCopper
DamperPoly cotton
GasketPP
Wire TerminalsPush Type
Unit Size (Dimensions)10-1/2"
Mounting Depth3-3/8"
Cut Out dimensions9"
Sub-Woofer Cutout Diameter9" Dia.
Equivalent Compliance (VAS) [L]17.9
Free Air Resonance (Fs) [Hz]38
Total Speaker "Q" (Qts)0.83
Linear Excursion (Xmax) [mm]8.3
Recommended Sealed Box Volume [L]17
Port Box volume [L]17
Port Length7-1/2"
Port Diameter3"
