Pioneer TS-D10D4

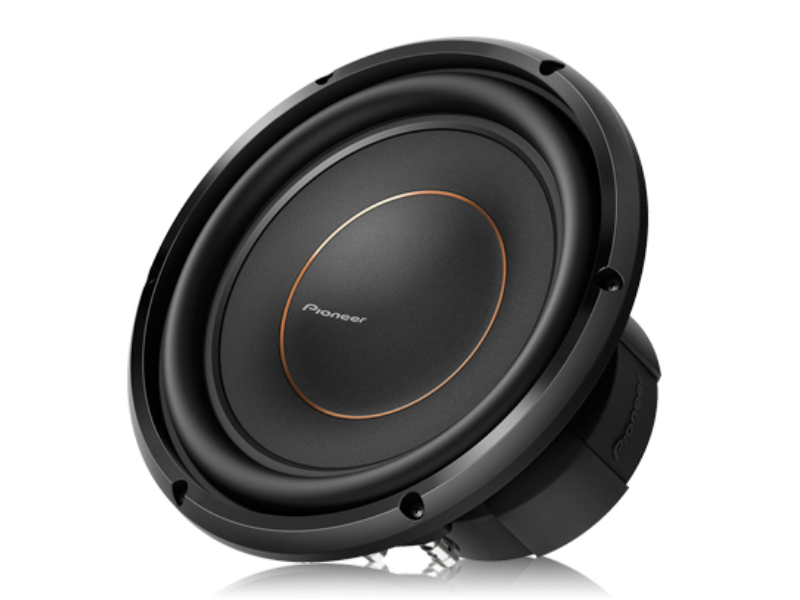

Pioneer 10" D-Series Dual 4 Ohms Voice Coil Subwoofer - TS-D10D4

Authorized Dealer Price Match Guarantee

Price Match Guarantee

Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Price	$240.00
Savings	$20.01
Our Price	219.99$219.99 Sale Ends : December 31, 2025 -- OR -- $55.00 Sale Ends : December 31, 2025 In 4 installments with On Sale

Availability
Schedule Delivery

Literature

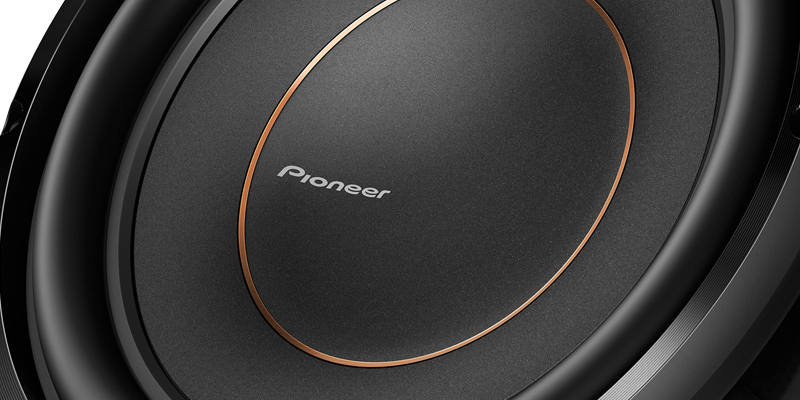

Aramid Fiber Interlaced Injection Molded Polypropylene (IMPP) Cone Construction
Butyl Rubber Surround for Strength and Linearity During High Excursion
Oversized 56.4 oz Double Stacked Magnet and Vented Pole Yoke for Increased Power Handling

Key Features
System Type	Component Subwoofer
Sensitivity (1W/1m)	76dB
Frequency Range	20 Hz to 6.6 kHz
CTA-2031 Compliant	Yes
Warranty	1 Year
Continuous Power handling (RMS) - Watts	500 Watts
Maximum Peak Power Handling - Watts	1500 Watts
Nominal Impedance - OHM	4 DVC
Build
Shape	Round
Size	10"
Cone Material	IMPP - Aramid Fiber
Center Cap Material	ABS
Surround Material	Rubber
Surround Type	Rolled
Basket Material	Stamped Metal
Magnet Material	Ferrite
Magnet Weight	57.8 oz
Voice Coil Type	Dual Voice
Voice Coil Bobbin	Alminium
Voice Coil wire	Copper
Damper	Aramid
Gasket	ABS
Wire Terminals	Push Type
Unit Size (Dimensions)	10-1/2"
Mounting Depth	5-1/2"
Cut Out dimensions	9"
Equivalent Compliance (VAS) [L]	22.3
Free Air Resonance (Fs) [Hz]	41
Total Speaker "Q" (Qts)	0.77
Linear Excursion (Xmax) [mm]	10.8
Recommended Sealed Box Volume [L]	19.8
Port Box volume [L]	19.8
Port Length	5"
Port Diameter	2"
