Pioneer TS-Z10LS4

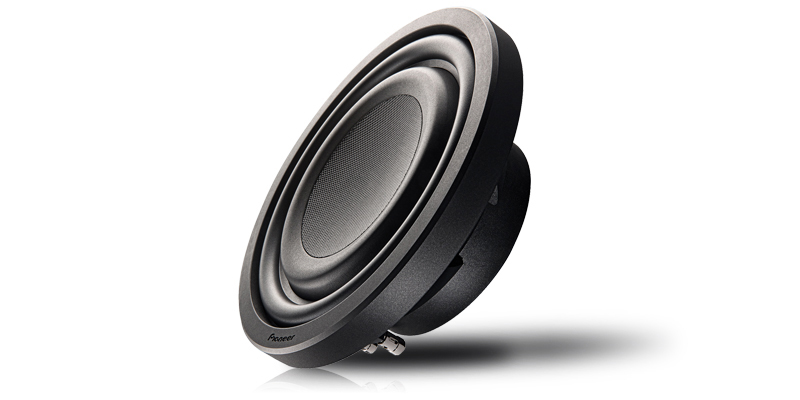

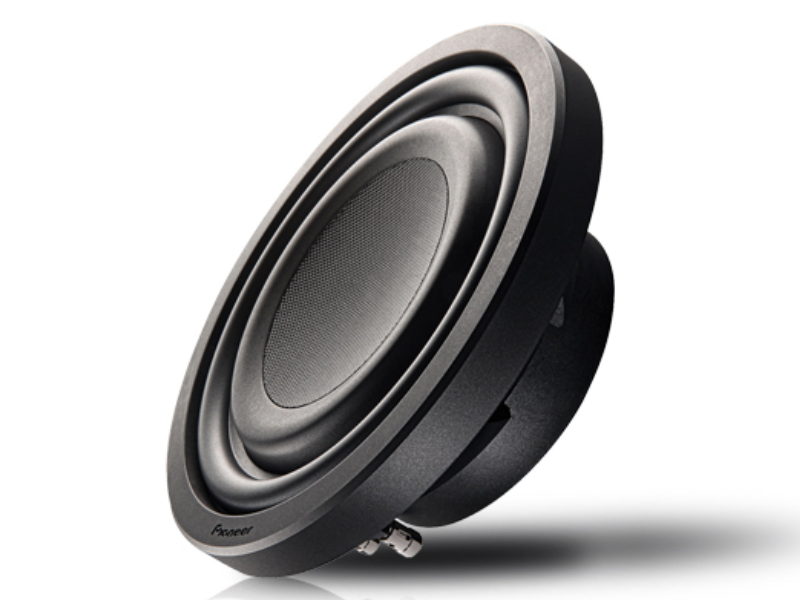

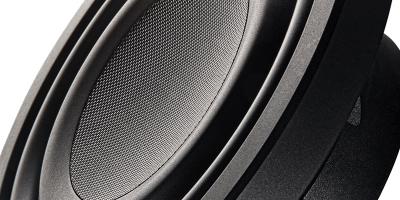

Pioneer 10" Z-Series Single 4 Ohms Voice Coil Subwoofer - TS-Z10LS4


Pioneer 10" Z-Series Single 4 Ohms Voice Coil Subwoofer - TS-Z10LS4
Pioneer 10" Z-Series Single 4 Ohms Voice Coil Subwoofer - TS-Z10LS4
Pioneer 10" Z-Series Single 4 Ohms Voice Coil Subwoofer - TS-Z10LS4
Black Friday Day Sale Now On
Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Price$360.00
Savings$30.01
Our Price $329.99
Sale Ends : December 31, 2025
-- OR -- $82.50
Sale Ends : December 31, 2025
In 4 installments with On Sale
Availability
Schedule Delivery
Literature

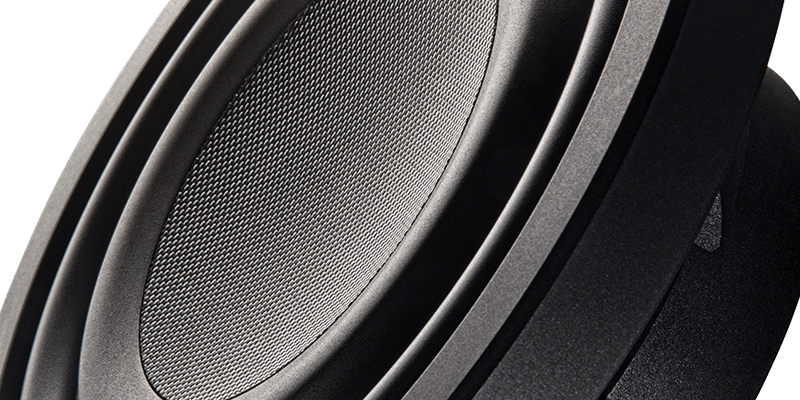

  • Twaron Aramid Fiber Cellulose Fiber Dual Layer Cone Construction
  • Extended Voice Coil, Dual Spider Design for Increased Linearity and High Excursion
  • Shallow Basket, Small Enclosure Design for Sound Optimization and Installation Flexibility
  • Designed for Hi-Res Audio
Key Features
System TypeComponent Subwoofer
Sensitivity (1W/1m)76 dB
Frequency Range20 Hz to 3.8 kHz
Hi-Res CertifiedYes
CTA-2031 CompliantYes
Warranty1 Year
Continuous Power handling (RMS) - Watts400 Watts
Maximum Peak Power Handling - Watts1300 Watts
Nominal Impedance - OHM4
Build
ShapeRound
Size10" oversized
Cone MaterialIMPP - Composite
Drive Cone MaterialTwaron Aramid Fiber
Surround MaterialRubber
Surround TypeRolled
Basket MaterialDie Cast Aluminum
Magnet MaterialFerrite
Magnet Weight70.2 oz
Voice Coil TypeSingle Voice
Voice Coil BobbinGlass imide
Voice Coil wireCopper
DamperPoly cotton
GasketRubber
Wire TerminalsPush Type
Unit Size (Dimensions)11-1/8"
Mounting Depth3-1/4"
Cut Out dimensions9-1/8"
Equivalent Compliance (VAS) [L]23.7
Free Air Resonance (Fs) [Hz]35
Total Speaker "Q" (Qts)0.52
Linear Excursion (Xmax) [mm]9.5
Recommended Sealed Box Volume [L]17
Port Box volume [L]17
Port Length7-1/2"
Port Diameter3"
