Ortofon Stylus Elite

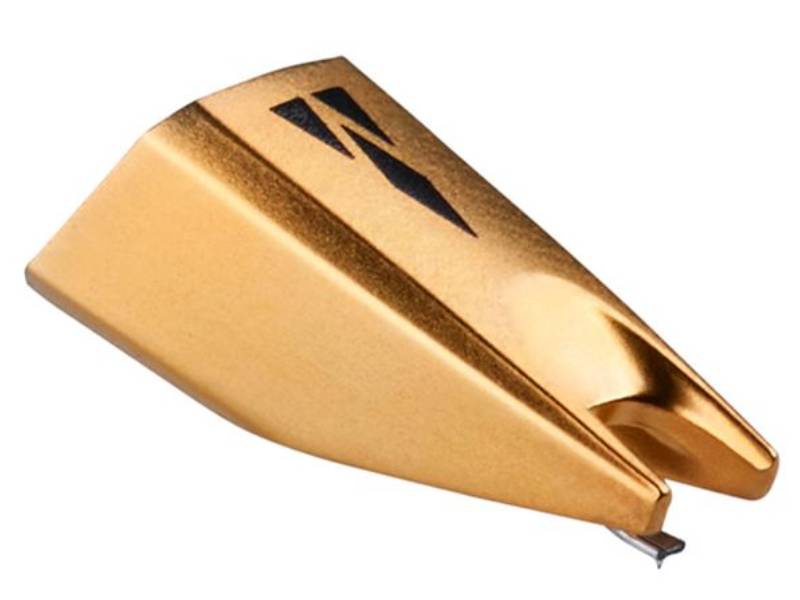

Ortofon Replacement Stylus for Concorde Elite - Stylus Elite


Ortofon Replacement Stylus for Concorde Elite - Stylus Elite
Black Friday Day Sale Now On
Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Our Price $491.99 -- OR -- $123.00 In 4 installments with
Availability
Schedule Delivery
Literature

Ortofon Replacement Stylus for Concorde Elite - Stylus Elite

Specifications
Output voltage 1000 Hz, 5cm/sec. - 8,5 mV
Channel balance 1 kHz - 1 dB
Channel separation1 kHz - 25 dB
Channel separation15 kHz - 15 dB
Frequency range-3 dB - 20 – 20,000 Hz
Tracking ability at 315Hz at recommended tracking force 100 μm
Compliance, dynamic lateral13 μm/mN
Stylus typeNude Elliptical
Stylus tip radiusr/R 8/18 μm
Tracking force range2.0-4.0 g
Tracking force recommended3.0 g
Tracking angle20°
Concorde cartridge weight18.5 g
