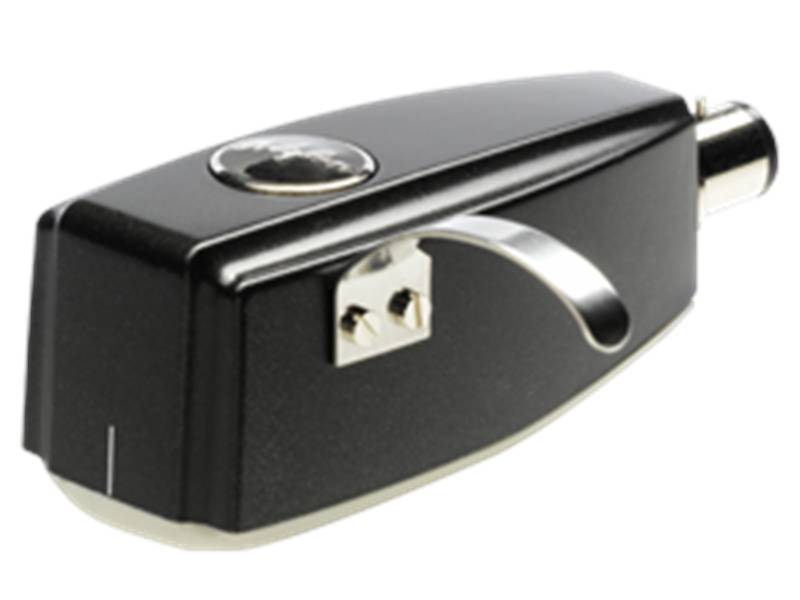

The SPU Classic GE MkII is known for its dynamic and powerful sound reproduction
The SPU Classic GE MkII is a Moving Coil cartridge with an elliptical stylus profil. The SPU Classic series embodies the essence of the original Moving Coils and are a perfect solution for the playback of both early and modern and contemporary stereo recordings.
The SPU Classic GE MkII’s elliptical stylus profile provides more detailed sound reproduction and expansive imaging.
| Specifications | |
|---|---|
| Output voltage | 1000 Hz, 5cm/sec. - 0.2 mV |
| Channel balance | 1 kHz < 1 dB |
| Channel separation | 1 kHz > 20 dB |
| Channel separation | 15 kHz > 10 dB |
| Frequency response | 20-20.000 Hz + 3/- 3 dB |
| Tracking ability at 315Hz at recommended tracking force * | > 60 µm Compliance, dynamic, lateral - 8 µm/mN |
| Stylus type | Nude Spherical |
| Stylus tip radius | R 18 µm |
| Tracking force range | 3.0-5.0 g (30-50 mN) |
| Tracking force, recommended | 4.0 g (40 mN) |
| Tracking angle | 20°*) Typical value |
| Internal impedance, DC resistance | 2 ohm |
| Recommended load impedance | > 10 ohm |
| Cartridge body material | Ground wood and resin composite |
| Coilwire material | High Purity Copper (OFC) |
| Cartridge colour | Black matte |
| Cartridge weight | 28 g |
