For music lovers who enjoy the tangible experience of playing a physical format, the CD retains its enduring appeal. The pleasure comes not just from browsing a collection of discs and reading the liner notes. It also comes from enjoying your music in superior fidelity. By combining high-quality components and decades of Onkyo audio know-how, the C-7030 CD player delivers a superb playback experience. The key lies in keeping the audio signal clean and free from interference, all the way to the output stage. To achieve this, we employ a new high-precision clock to dramatically reduce timing errors, along with our original VLSC™ to reduce pulse noise. Driving the system is a massive, custom-built transformer that provides a clean and stable power supply. Given how affordable the C-7030 is, build quality is exceptional. A 1/16" (1.6 mm)-thick flat chassis base helps reduce unwanted vibrations, while the sleek aluminum front panel provides an elegant finish.
| General | |
|---|---|
| Frequency Response | 4 Hz-20 kHz/+1 db, -3db (DSP bypass) |
| THD (1 kHz) | THD (1 kHz) |
| Dynamic Range | 100 dB |
| S/N Ratio | 107 dB |
| Optical | -22.5dBm |
| Digital (Coaxial) | 0.5 Vp-p/75 ohms |
| Analog | 2.0 V (rms)/500 ohms |
| Power Supply | AC 120 V, 60 Hz |
| Power Consumption | 12 W |
| Standby Power Consumption | 0.3 W |
| Dimensions (W x H x D) | 17 1/8" x 4" x 12 1/16"(435 x 101 x 306 mm) |
| Weight | 15.9lbs (7.2 kg) |
| Features | |
| Shuffle/Random Play | Yes |
| Direct Track Access | by remote |

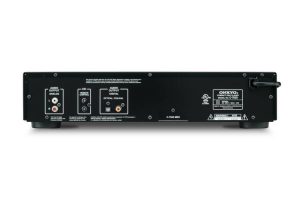

| Digital Output (Optical/Coaxial) | 1 Optical/1 Coaxial |
| Analog Output (Fixed) | Yes |

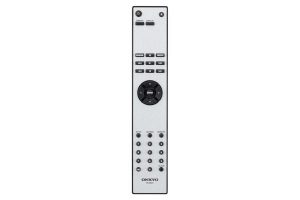

| RI Remote Control | Yes |
| Plays MP3 CDs, CD-R/CD-RWs | Yes |
| Vector Linear Shaping Circuitry (VLSC) | Yes |
| High Quality 192 kHz/24-Bit D/A Converter | Yes |
| Repeat and Random Modes | Yes |
| 2 digital outputs (optical/coaxial) | Yes |
| Headphone Jack w/ Volume Control | Yes |
| High-rigidity, anti-resonant chassis | Yes |
