Kenwood X302-4

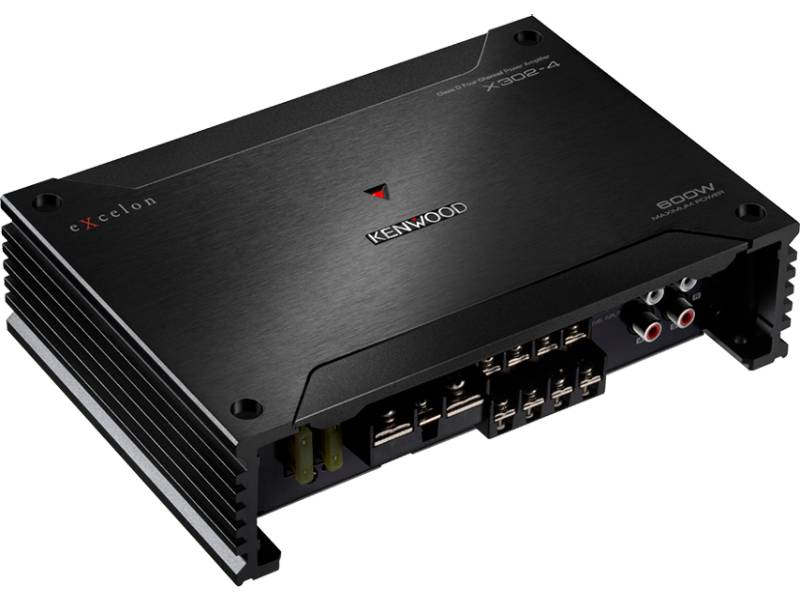

Kenwood Class D Mono 4-Channel Power Amplifier - X302-4

Authorized Dealer Price Match Guarantee

Price Match Guarantee

Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Our Price

$349.00 -- OR -- $87.25 In 4 installments with

Buy Online

Availability
Schedule Delivery

X302-4
Best Deal Promise

Key Features

High-Res Audio Compliant
CTA-2006 Compliant
2 Ohms Load Capability
One Sided Connection
Speaker Level Input with Signal Sensing Turn-on
Max Power 600W
Size (inch) (W) 8-3/8" x (H) 2-1/16" x (D) 5-7/8"
Variable High & Low Pass Filter
Bass Boost

Rich and Immersive High-Resolution Audio

High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.

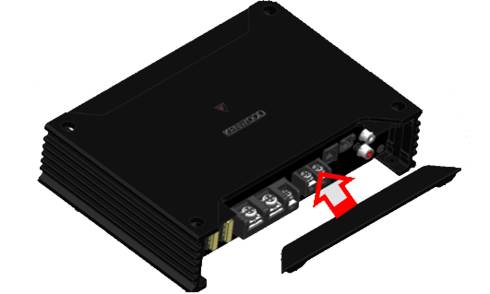

Sliding Terminal Cover

Detachable sliding terminal cover offers a sleek design and easier installation

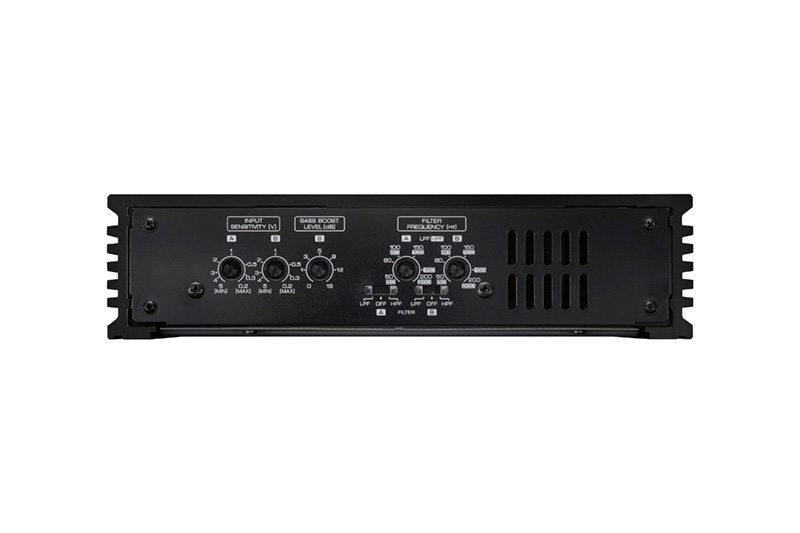

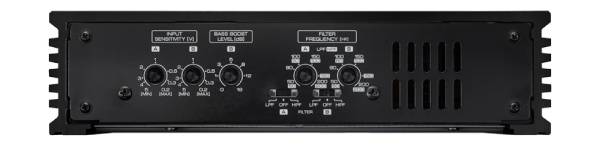

Variable Gain Circuit

Improved Signal to Noise Ratio

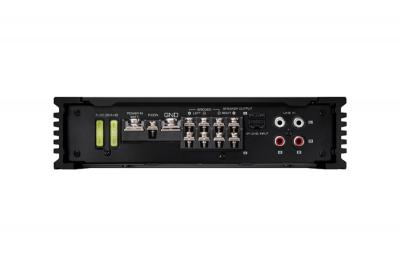

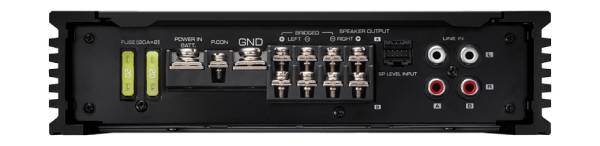

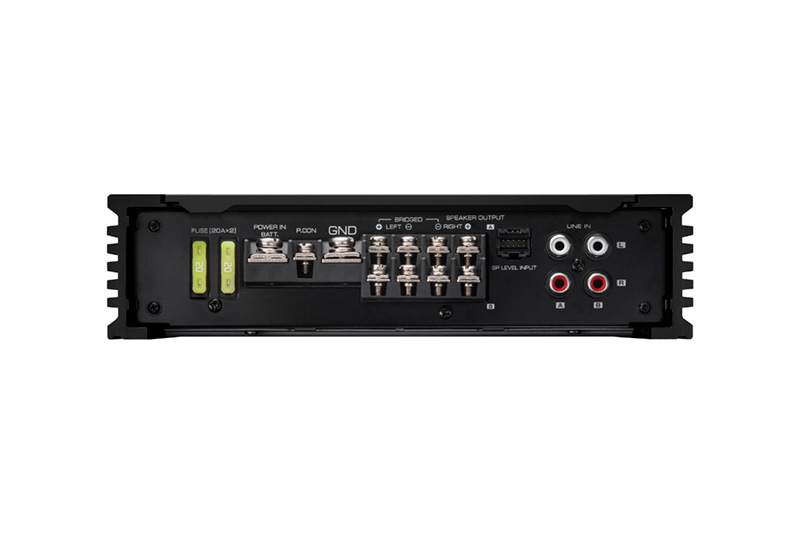

One-side Connection

All terminals and connections are on one side for easier installation and a cleaner look.

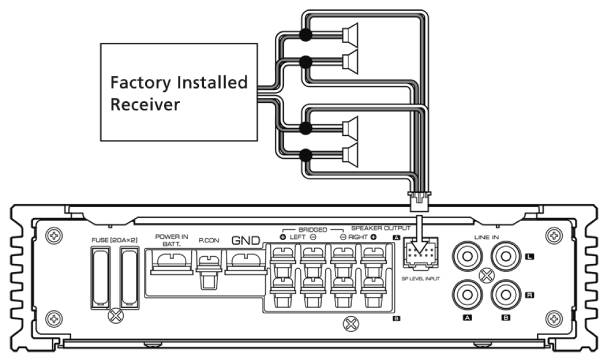

Speaker Level Input Harness

Speaker Level Input Harness is included to connect to speaker wires from factory installed receivers.

CTA-2006 Primary Ratings
Power Output	50 Watts RMS x 4 at 4 Ohms and ≤1%THD+N
Signal-to-Noise Ratio	85dBA (Reference: 1Watt into 4Ohms)
Maximum Power Output
MAX POWER	600W
Rated Power Output at 14.4V
A/B (4 Ohms)	50Watts RMS x 4 (4 Ohms, 20-20kHz, ≤1.0% THD)
A/B (2 Ohms)	75Watts RMS x 4 (2 Ohms, 1kHz, ≤1.0% THD)
SUB (4 Ohms)	-
SUB (2 Ohms)	-
A/B (Bridged 4Ohms)	150Watts RMS x 2 (Bridged 4 Ohms, 1kHz, ≤1.0% THD)
Specifications
Signal to Noise Ratio	100dB (Reference: Rated Power into 4Ohms at 14.4V)
Frequency Response	20Hz-50kHz (+0dB, -3dB)
Frequency Response	-
Input Impedance	10k ohm
Speaker Impedance	4Ω (2Ω to 8Ω allowable)
Bridged Connection	4Ω to 8Ω allowable
AUDIO SECTION
Low-Pass Filter	50Hz-200Hz, -12dB/oct (A/B)
High-Pass Filter	50Hz-200Hz, -12dB/oct (A/B)
Bass Boost	40Hz, 0dB - +18dB (Bch)
Infrasonic Filter	-
RCA Input Sensitivity	0.2[V] - 5.0 [V]
Speaker Level Input Sensitivity	4.0[V] - 12.0 [V]
Terminals
Battery & Ground	M6 Screw Type Terminal Block
Speaker Output	M4 Screw Type Terminal Block
General
Dimensions(WxHxD)	(W)8-3/8” x (H)2-1/16” x (D)5-7/8”
Dimensions(WxHxD)	(W) 213cm x (H) 53cm x (D) 149cm
Weight	3.1 lbs ( 1.4 kg)
Operating Voltage	14.4V（11-16V allowable）
Current Consumption	20[A]
