Power Ratings
| CTA-2006-D Value | |
|---|---|
| Maximum Dynamic Power | 350W at 4ohms and ≤ 10% THD + N |
| Continuous Power Output | 300W at 4ohms and ≤ 1% THD + N |
| Signal to Noise | 85dBA reference 1 Watt RMS |
| Maximum Power Output | |
| MAX POWER | 1000W |
| Rated Power Output at 14.4V | |
| A/B (4 Ohms) | - |
| A/B (2 Ohms) | - |
| SUB (4 Ohms) | 300Watts RMS x 1 (4 Ohms, 20-200Hz, ≤1.0% THD) |
| SUB (2 Ohms) | 500Watts RMS x 1 (2 Ohms, 100Hz, ≤1.0% THD) |
| Specifications | |
| Signal to Noise Ratio | 100dB (Reference: Rated Power into 4Ohms at 14.4V) |
| Frequency Response | 20Hz- (+0dB, -3dB) SUBch (Upper Feqency is depended on Low Pass Filter) |
| Input Impedance | 10k ohm |
| Speaker Impedance | 4Ω (2Ω to 8Ω allowable) |

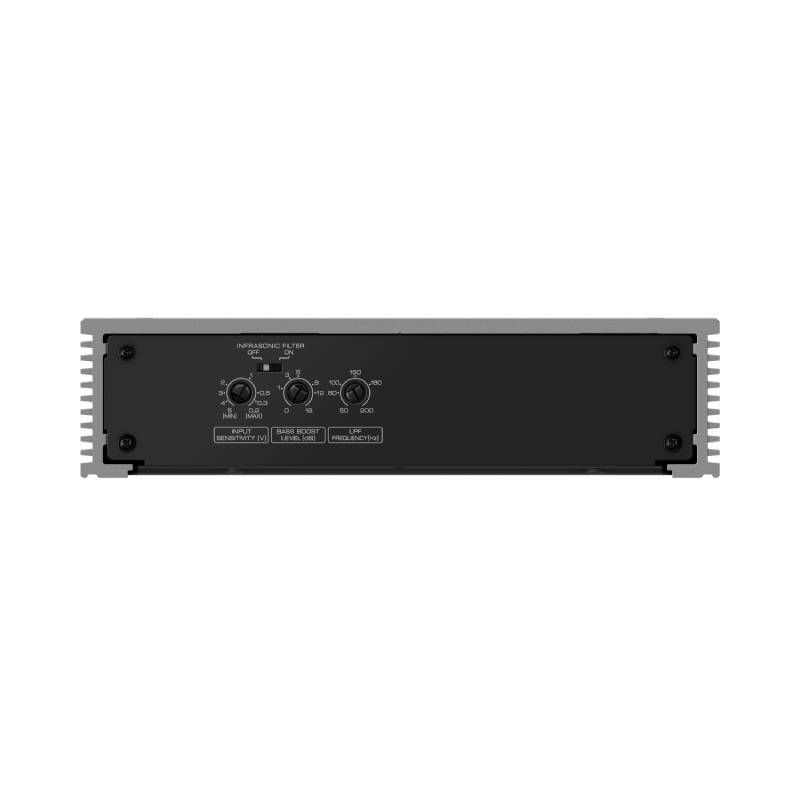

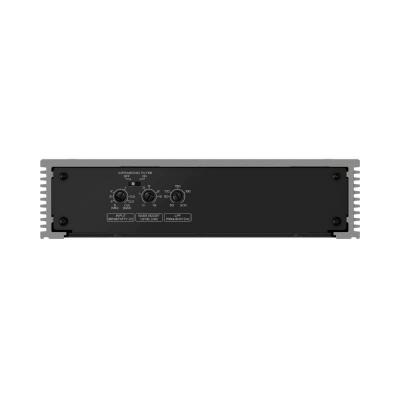

| AUDIO SECTION | |
| Low-Pass Filter | 50Hz-200Hz, -24dB/oct |
| High-Pass Filter | - |
| Infrasonic Filter | 25Hz, -24dB |
| Bass Boost | Built in Bass Boost Control (40Hz, 0dB-18dB) |
| RCA Input Sensitivity | 0.2[V] - 5.0 [V] |
| Speaker Level Input Sensitivity | 4.0[V] - 12.0 [V] |

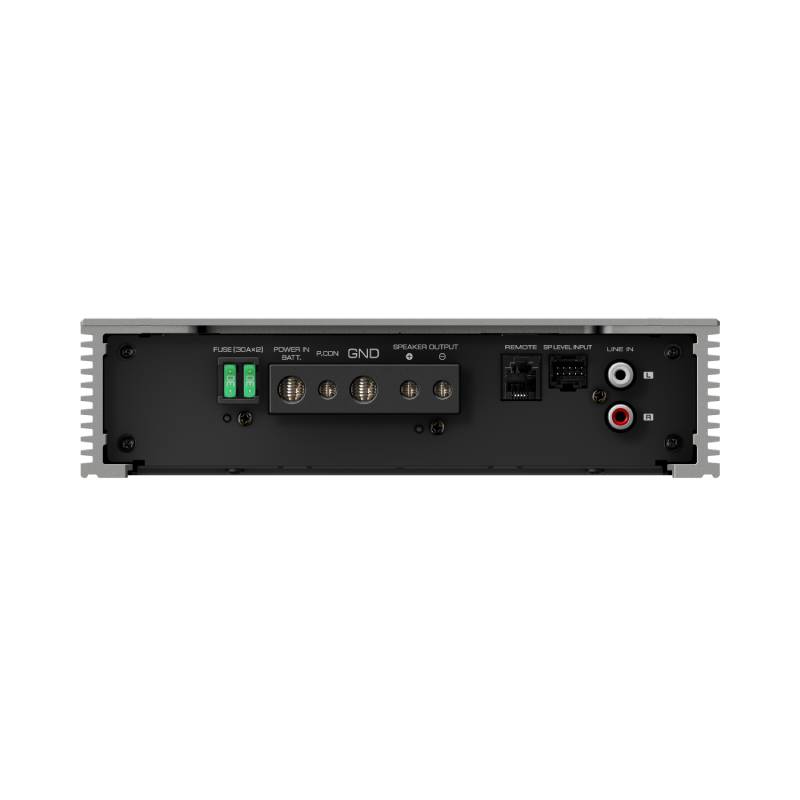

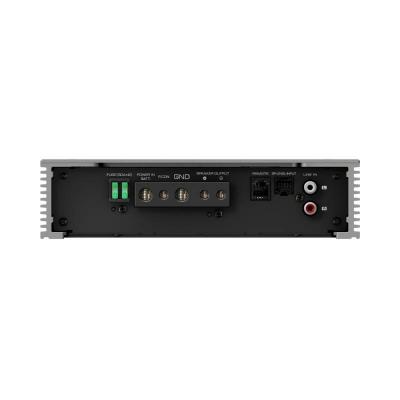

| Terminals | |
| Battery & Ground | Wire Clamp Type Terminal Block(M6,Nickel Colored）,Hexagon Screw,Capable for AWG4-AWG6 |
| Speaker Output | Wire Clamp Type Terminal Block(M4,Nickel Colored）,Hexagon Screw,Capable for AWG8-AWG16 |
| General | |
| Dimensions(WxHxD) | (W)8-3/8” x (H)2-1/16” x (D)5-7/8” |
| Dimensions(WxHxD) | (W) 213mm x (H) 53mm x (D) 149mm |
| Weight | 3.3 lbs ( 1.5kg) |
| Operating Voltage | 14.4V（11-16V allowable) |
| Current Consumption | 28 [A] |
| Key Features | |
| Key Features | CTA-2006-D Compliant Class D 2 Ohms Load Capability One-Sided Connection Speaker Level Input Signal Sensing Turn-on Remote Level Control ※Input Sensitivity for Sub Terminal Concealing Cover(Resin Mold) Power MOS-FET Switching Power Supply Extruded Aluminum Heat Sink Design |
