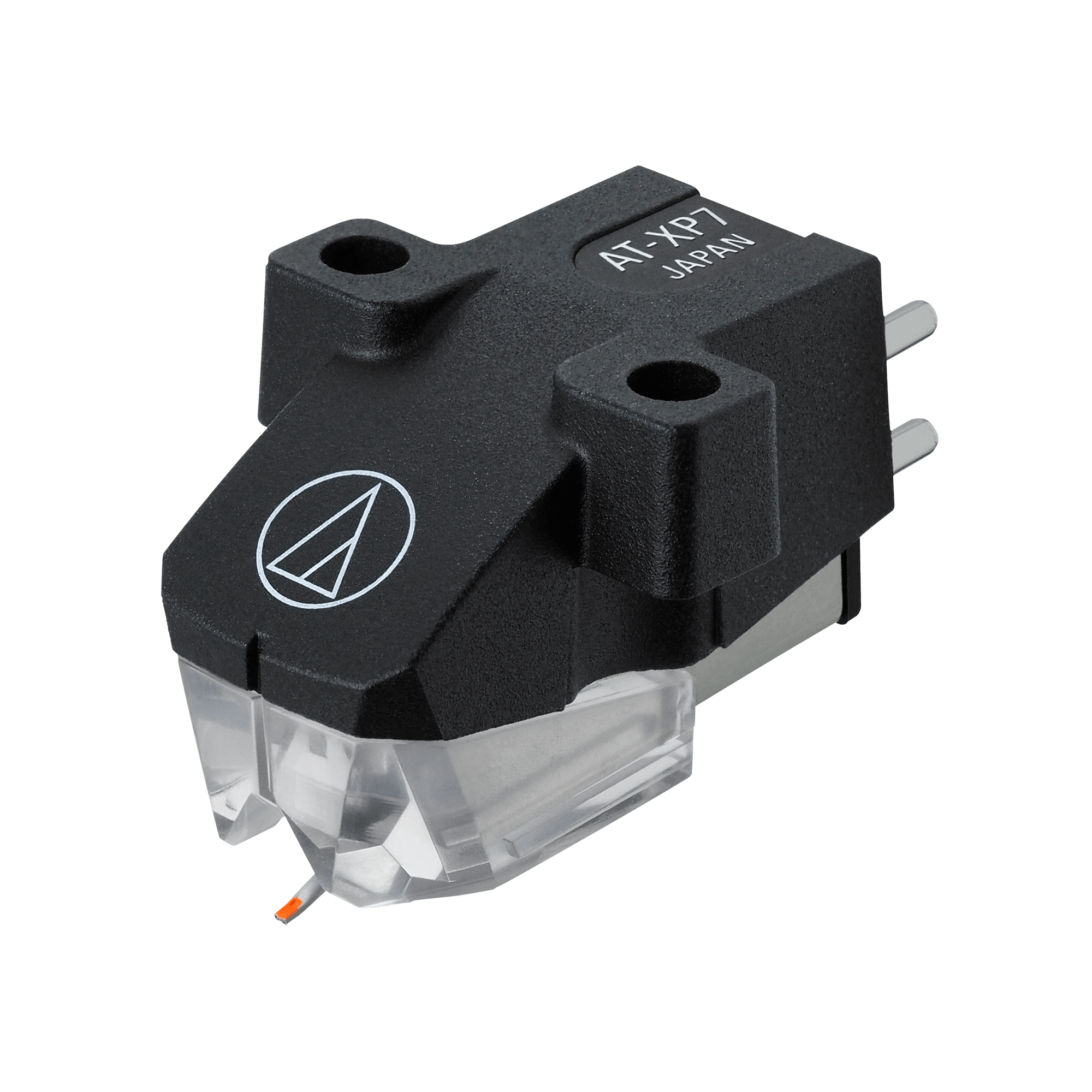

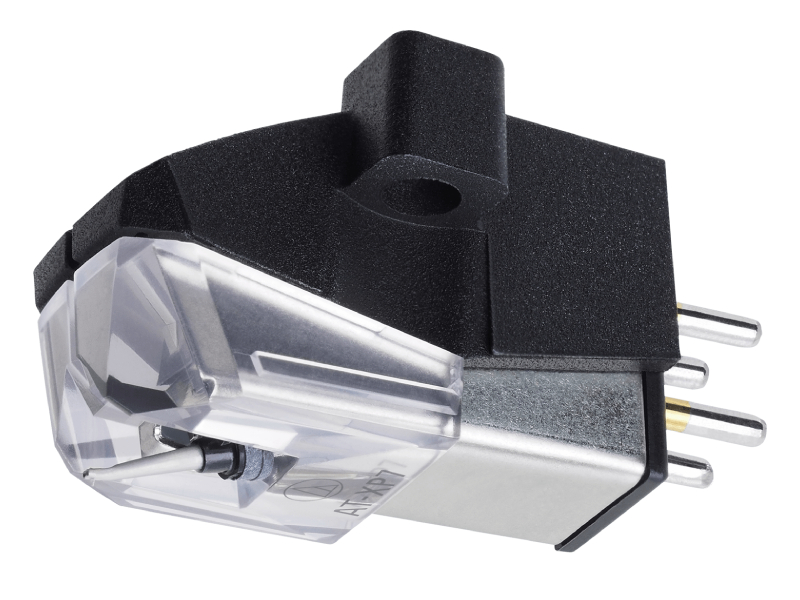

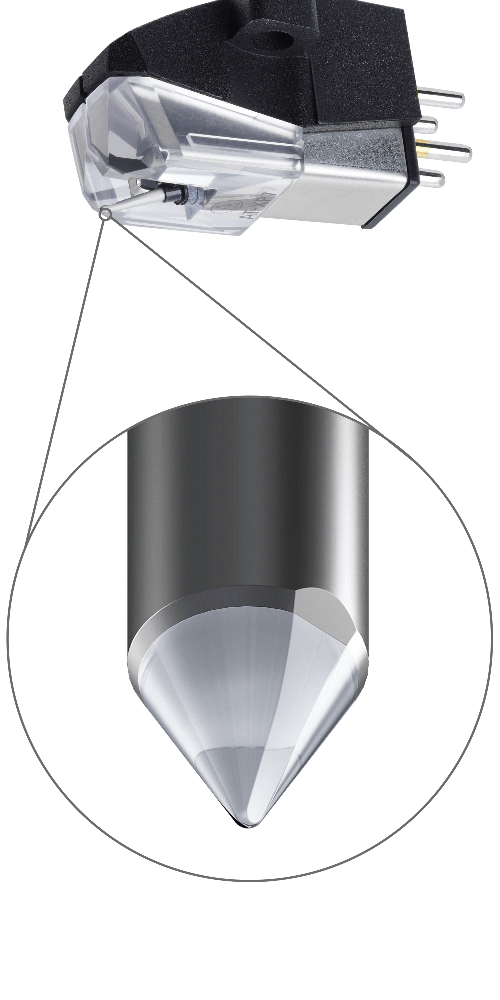

The AT-XP7 is specially designed for the needs of DJs. This cartridge features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 6.0 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus, the cartridge is specifically designed to provide maximum visibility of the stylus tip.
Features
| Specifications | |
|---|---|
| Frequency Response | 20-20,000 Hz |
| Channel Separation | 22 (dB at 1 kHz) |
| Vertical Tracking Angle | 20° |
| Vertical Tracking Force | 2.0-4.0 g (3.0 g standard) |
| Stylus Construction | Bonded round shank |
| Recommended Load Impedance | 47,000 ohms |
| Coil Impedance | 6.7 k ohms (1 kHz) |
| DC Resistance | 990 ohms |
| Coil Inductance | 1.0 H (1 kHz) |
| Output Voltage | 6.0 mV (1 kHz, 5 cm/sec.) |
| Output Channel Balance | 2.0 dB (1 kHz) |
| Stylus Shape | 0.3 x 0.7 mil elliptical |
| Cantilever | Aluminum tapered pipe |
| Static Compliance | 20 x 10-6 cm/dyne |
| Dynamic Compliance | 8.0x10-6cm/dyne (100Hz) |
| Mounting | Half-inch |
| Dimensions | 17.2 mm (0.68") H × 17.8 mm (0.67") W × 28.3 mm (1.20") D |
| Accessories Included | Cartridge installation slotted screws 11.0 mm (0.43”) x 2 and 8.0 mm (0.31”) x 2, Washer x 2, Round nut x 2, Non-magnetic screwdriver x 1 |
| Mounting Feature | Half-inch mount |
| Recommended Load Capacitance | 100 to 200 pF |
| Replacement Stylus | ATN-XP7 |
| Stylus Size | 0.3 x 0.7 mil |
| Type | VM Dual Magnet |
| Weight | 6.2 g (0.22 oz) |
